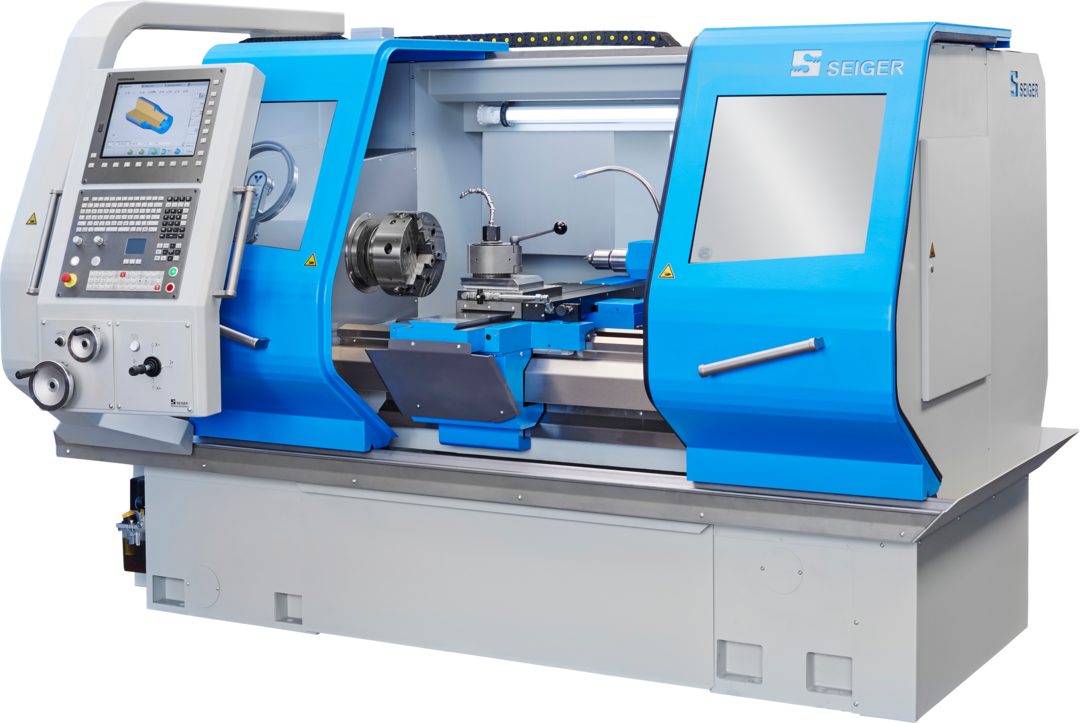

SLZ 420E
SEIGER cycle lathe: The universal model for many applications, with powerful performance and top accessibility
![SEIGER SLZ 420E Drehmschine](/files/0387_header20160903-3503_slz420e.png)
SLZ 420E
SEIGER cycle lathe: The universal model for many applications, with powerful performance and top accessibility
Information
General information
- Available with CNC or cycle control from Siemens or Heidenhain
- Safety clutch in the Z-axis and X-axis
- Torsion-resistant bed made of high-quality cast iron with hardened precisely ground slideways and glass scale on the X-axis. Bed width 350 mm
- The control panel can be moved and pivoted freely
- High degree of precision and rigidity of spindles thanks to precise spindle bearing, spindle bore Ø 80 mm as standard, Ø up to 130 mm as an option
Overview of features
Photos
Specifications and performance
Specifications
SLZ 420E | Unit | Value |
---|---|---|
Swing over bed | mm | 430 |
Swing over cross slide | mm | 220 |
Bed width | mm | 350 |
Spindle head in accordance with DIN 55027 | Size | 6 |
Spindle bore Ø | mm | 80 / 93 (Option) |
Spindle Ø in the front bearing | mm | 110 / 130 (Option) |
Tailstock quill Ø | mm | 70 |
Tailstock stroke | mm | 150 |
Tailstock Morse taper | MK | 5 |
Center distance | mm | 1.000 / 1.500 / 2.000 |
Performance
SLZ 420E | Unit | Value |
---|---|---|
Main drive | KW | 11 / 20 (Option) |
Speed range | 1 / min | 1 – 3.600 |
Maße | ||
Length | mm | 1.990 + Center distance |
Width | mm | 2.200 |
Height | mm | 1.970 |
