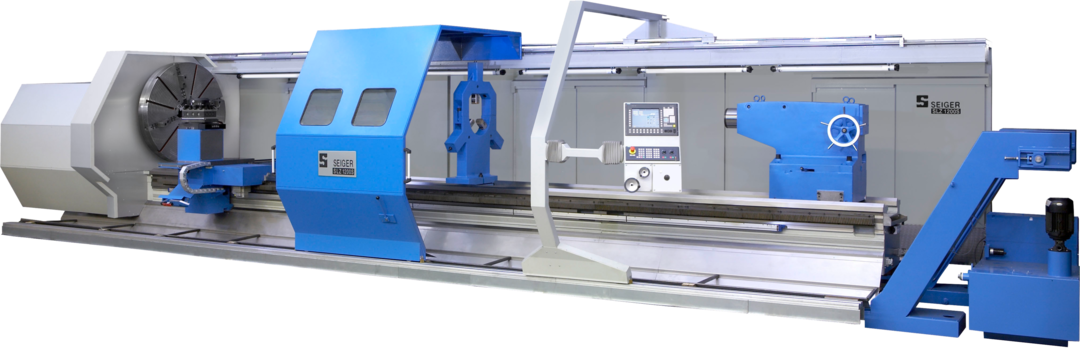

![SEIGER SLZ 1200S Drehmschine](/files/0484_header_bild_3.png)
SLZ 1200S
SEIGER cycle lathe: The top performer for heavy-duty cutting from Seiger
Information
General information
- Available with CNC or cycle control from Siemens or Heidenhain
- Torsion-resistant box-type bed made of high-quality cast iron with hardened precisely ground slideways and glass scale on the X-axis
- Bed width 900 mm, support guide at the front for the apron
- Rack and pinion drive on the Z-axis
- Direct position measurement in the Z-axis and X-axis with sealing air system

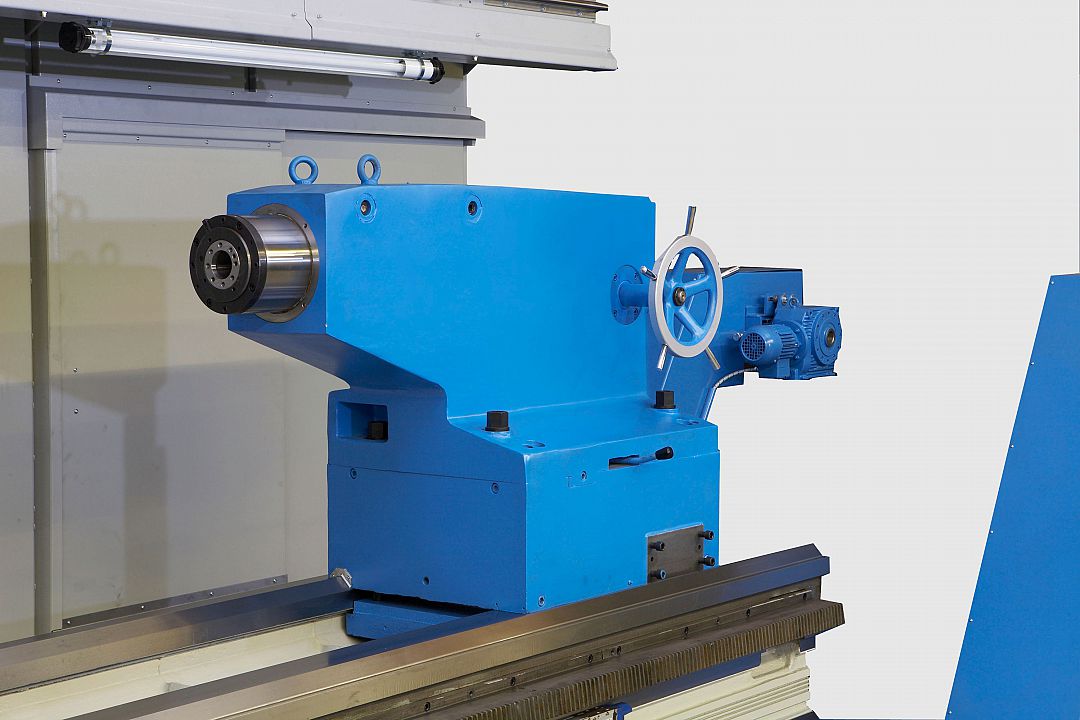

- Electric tailstock drive with quill diameter 220 mm
- Main drive with 70 kW and 2-speed gearbox, automatically switchable
- Headstock with 3 bearing points, bearing inner diameter from 240 mm to 300 mm
- Different paneling variants as part paneling or full paneling
Overview of features
Photos
Specifications and performance
Specifications
SLZ 1200S | Unit | Value |
---|---|---|
Swing over bed | mm | 1.250 – 1.600 (Option) |
Swing over cross slideführung | mm | 850 – 1.200 |
Bed width | mm | 900 |
Spindle head in accordance with DIN 55027 | Size | 15 |
Spindle bore Ø | mm | 110 |
Spindle Ø in the front bearing | mm | 240 |
Tailstock quill Ø | mm | 220 |
Tailstock stroke | mm | 315 |
Tailstock Morse taper | - | Fixed tip |
Center distance | mm | 3.000 - 20.000 |
Performance
SLZ 1200S | Unit | Value |
---|---|---|
Main drive | KW | 70 |
Speed range | 1 / min | 1 – 710 |
Dimensions | ||
Length | mm | 5.500 + Center distance |
Width | mm | 3.450 |
Height | mm | 2.780 |
