SLZ 2000
SEIGER cycle lathe: The 4-way lathes from Seiger. Cycle-controlled lathes for large turned parts with state-of-the-art machine bed technology

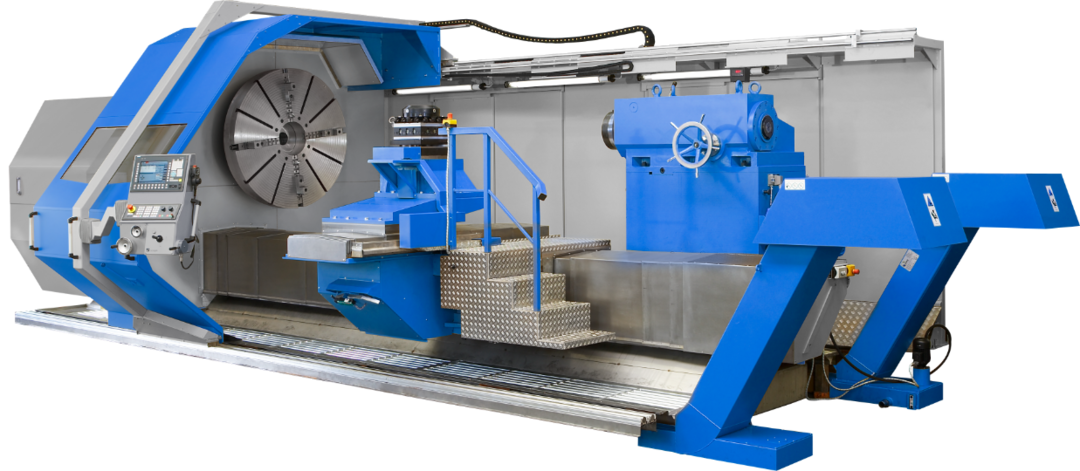

![SEIGER SLZ 2000 Drehmschine](/files/0504_seiger_slz_2000_blau.png)
SLZ 2000
SEIGER cycle lathe: The 4-way lathes from Seiger. Cycle-controlled lathes for large turned parts with state-of-the-art machine bed technology
Information
General information
- Available with CNC or cycle control from Siemens or Heidenhain

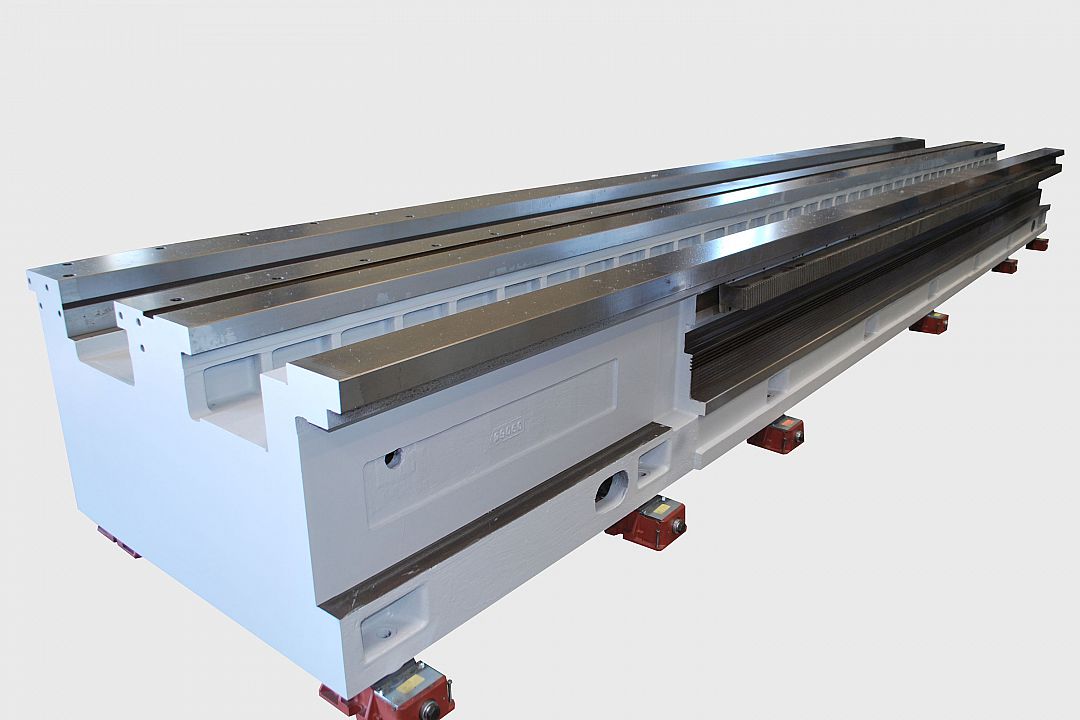

- Torsion-resistant 4-way box-type bed, in Hydropol version, steel-sheathed with hardened, precision-ground slideways and glass scale

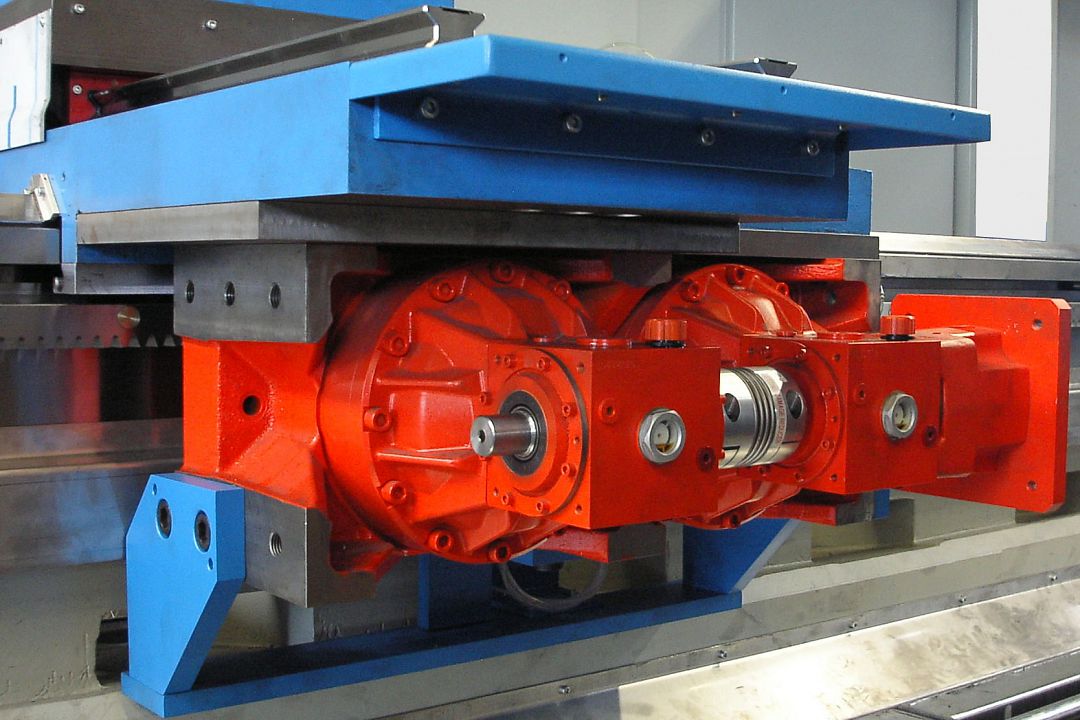

- Bed width 1,350 mm with rack and pinion drive on the Z-axis
- Direct position measuring system in the Z-axis and X-axis incl. sealing air system

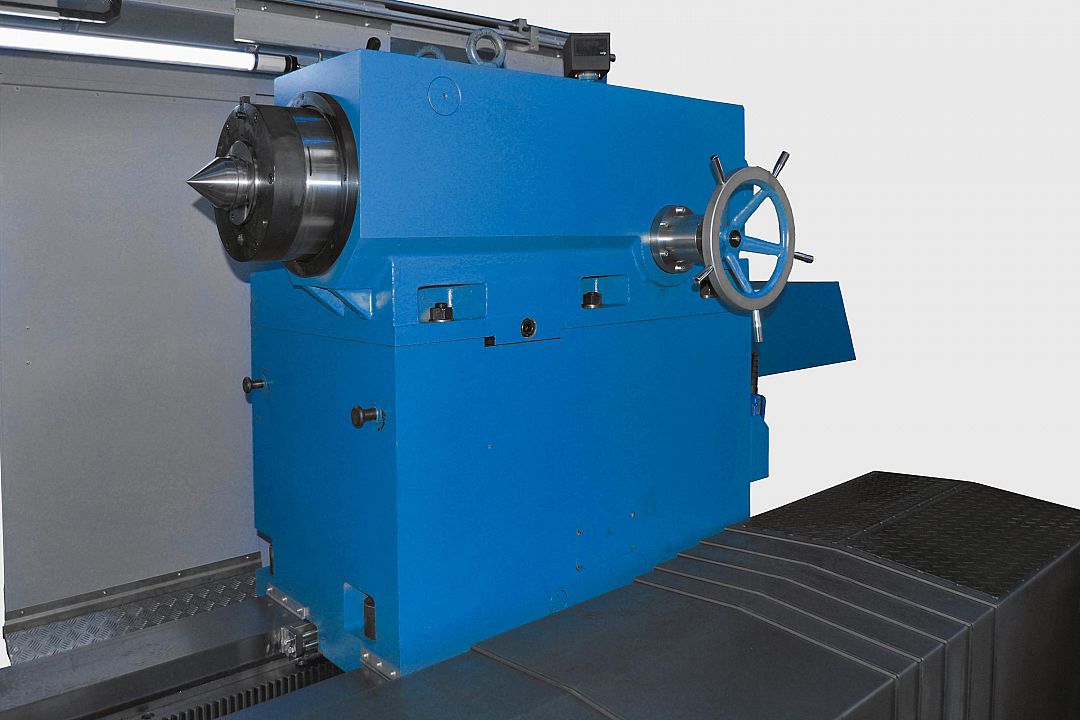

- Electric tailstock drive with quill diameter 320 mm

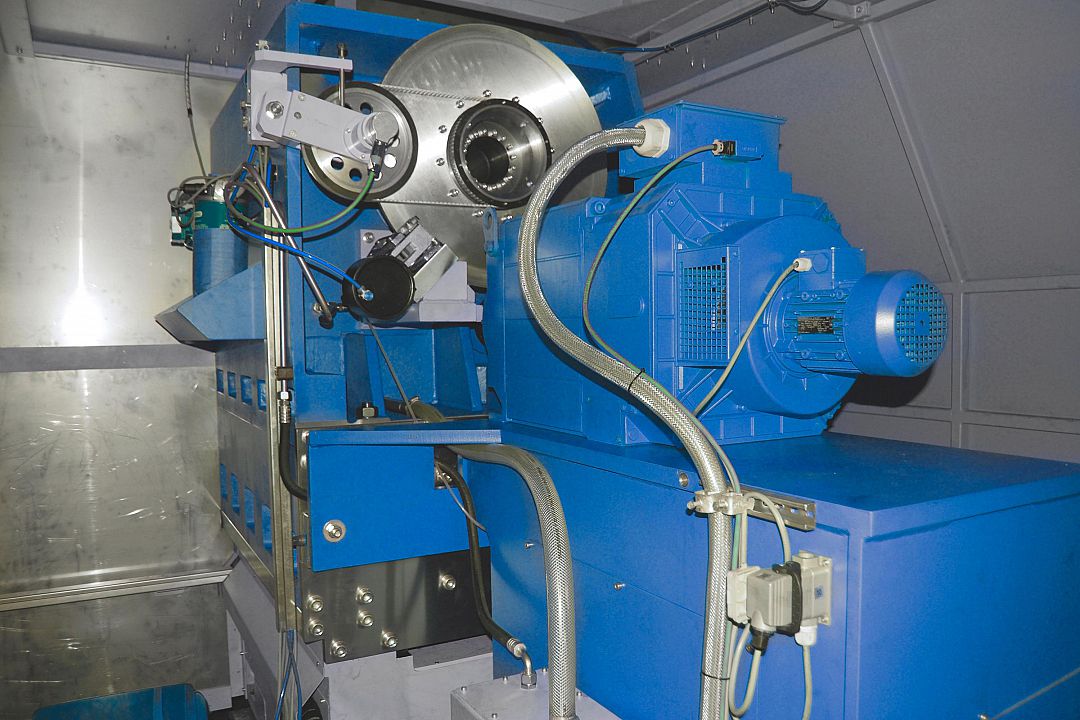

- Main drive with 70 kW and 2-speed gearbox, automatically switchable
- Headstock with 3 bearing points, bearing inner diameter 300 mm
- Different paneling variants can be manufactured, as partial or full paneling
- 4-slideway bed and support guide at the front for the support
- Flat slideways made of hardened and ground steel screwed on
Overview of features
Photos
Specifications and performance
Specifications
SLZ 2000E | Unit | Value |
---|---|---|
Swing over bed | mm | 2.000 |
Swing over cross slideführung | mm | 1.400 |
Bed width | mm | 1.350 |
Spindelkopf nach DIN 55026 | Size | 20 |
Spindle bore Ø | mm | 120 |
Spindle Ø in the front bearing | mm | 300 |
Tailstock quill Ø | mm | 320 |
Tailstock stroke | mm | 250 |
Tailstock Morse taper | Fixed tip | |
Center distance | mm | 3.000 – 20.000 |
Performance
SLZ 2000E | Unit | Value |
---|---|---|
Main drive | KW | 70 |
Speed range | 1/min | 1 – 710 |
Dimensions | ||
Length | mm | 5.900 + Center distance |
Width | mm | 4.530 |
Height | mm | 3.170 |
