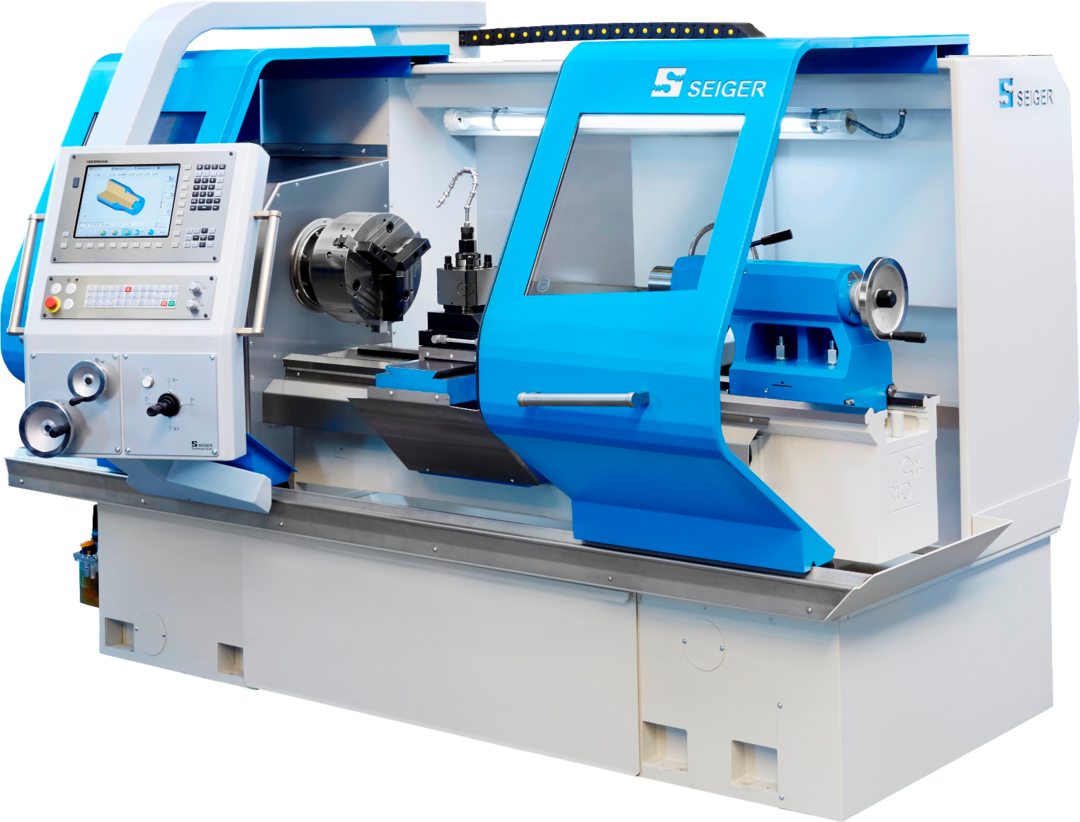

SLZ 500E
SEIGER cycle lathe: A compact powerhouse with numerous advantages for the user
![SEIGER SLZ 500E Drehmschine](/files/0398_header_20160216-2154_slz500e.png)
SLZ 500E
SEIGER cycle lathe: A compact powerhouse with numerous advantages for the user
Information
General information
- Available with CNC or cycle control from Siemens or Heidenhain
- Torsion-resistant bed made of high-quality cast iron with hardened precisely ground slideways and glass scale on the X-axis
- Safety clutch in the Z-axis and X-axis
- Sealing air with carbon filter in the direct position measurement system
- High degree of precision and rigidity of spindles thanks to precise spindle bearing, spindle bore Ø 93 mm as standard, Ø up to 130 mm as an option
- Solid tailstock, quill Ø 90 mm with internal taper MK5
- Large projection above the cross slide for good accessibility during shaft machining.
Overview of features
Photos
Specifications and performance
Specifications
SLZ 500E | Unit | Value |
---|---|---|
Swing over bed | mm | 500 |
Swing over cross slide | mm | 280 |
Bed width | mm | 350 |
Spindle head in accordance with DIN 55027 | Size | 8 |
Spindle bore Ø | mm | 93 / 130 (Option) |
Spindle Ø in the front bearing | mm | 130 / 170 (Option) |
Tailstock quill Ø | mm | 90 |
Tailstock stroke | mm | 180 |
Tailstock Morse taper | MK | 5 |
Center distance | mm | 1.000 / 1.500 / 2.000 |
Performance
SLZ 500E | Unit | Value |
---|---|---|
Main drive | KW | 25 |
Speed range | 1 / min | 1 – 3.000 |
Dimensions | ||
Length | mm | 1.990 + Center distance |
Width | mm | 1.850 |
Height | mm | 1.900 |
