SLZ 1500
SEIGER cycle lathe: The 4-way lathes from Seiger. Cycle-controlled lathes for large turned parts with state-of-the-art machine bed technology.
![SEIGER SLZ 1500 Drehmschine](/files/0493_header_bild_3.png)
SLZ 1500
SEIGER cycle lathe: The 4-way lathes from Seiger. Cycle-controlled lathes for large turned parts with state-of-the-art machine bed technology.
Information
General information
- Available with CNC or cycle control from Siemens or Heidenhain

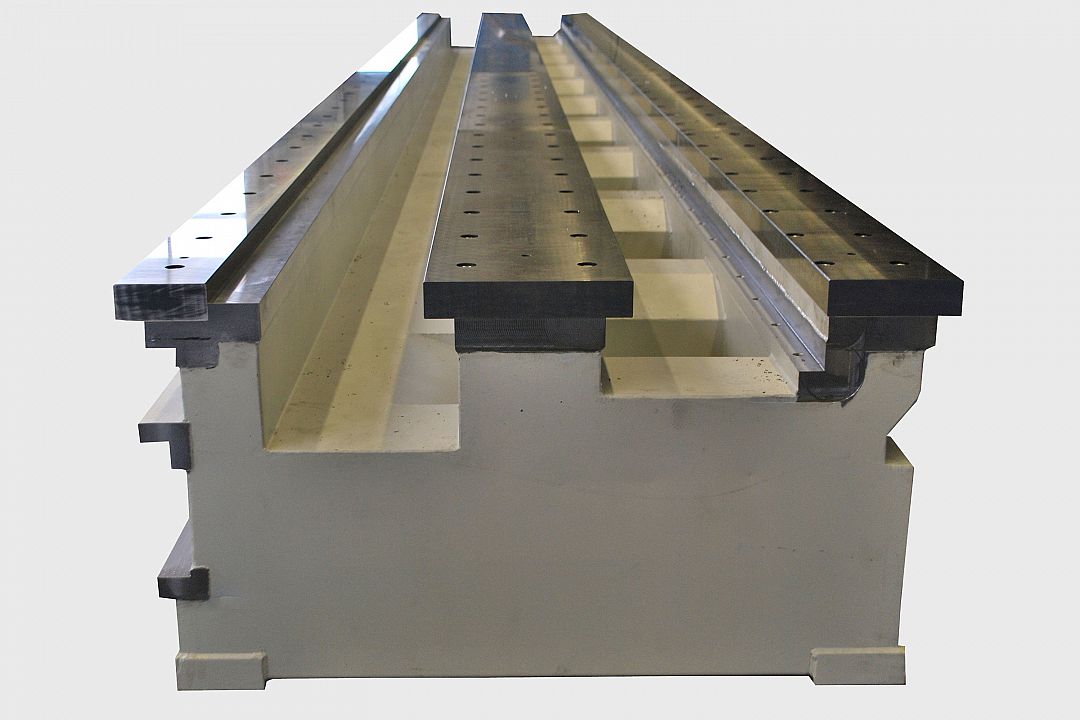

- Torsion-resistant 4-way box-type bed made of Hydropol with screwed on, hardened, precision-ground slideways made of steel
- Bed width 1,350 mm with rack and pinion drive on the Z-axis
- Direct position measuring system in the Z-axis and X-axis incl. sealing air system

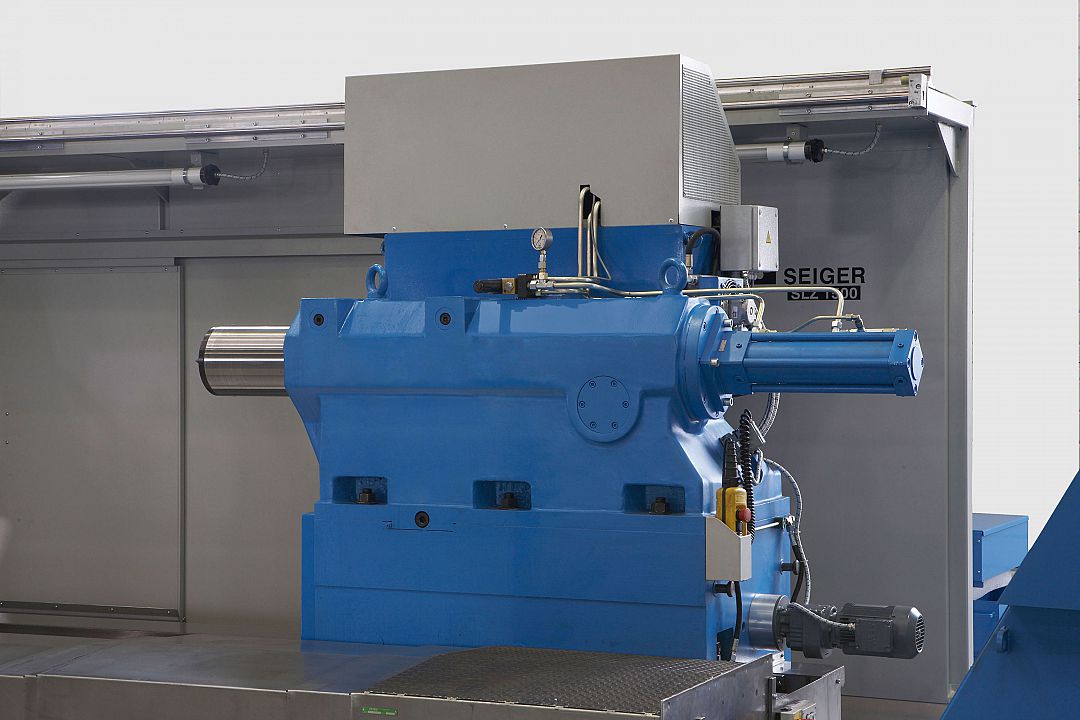

- Electric tailstock drive with quill diameter 220 mm
- Main drive with 70 kW and 2-speed gearbox, automatically switchable
- Headstock with 3 bearing points, bearing inner diameter 240 mm
- Different paneling variants can be manufactured, as partial or full paneling
Overview of features
Photos
Specifications and performance
Specifications
SLZ 1500 | Unit | Value |
---|---|---|
Swing over bed | mm | 1.600 |
Swing over cross slideführung | mm | 1.240 |
Bed width | mm | 1.350 |
Spindle head in accordance with DIN 55027 | Size | 15 |
Spindle bore Ø | mm | 110 |
Spindle Ø in the front bearing | mm | 240 |
Tailstock quill Ø | mm | 220 |
Tailstock stroke | mm | 350 |
Tailstock Morse taper | Fixed tip | |
Center distance | mm | 3.000 - 20.000 |
Performance
SLZ 1500 | Unit | Value |
---|---|---|
Main drive | KW | 70 |
Speed range | 1 / min | 1 – 710 |
Dimensions | ||
Length | mm | 5.800 + Center distance |
Width | mm | 4.200 |
Height | mm | 3.050 |
