SLZ 800E
SEIGER cycle lathe: Good accessibility with best cutting rates and well thought-out paneling systems

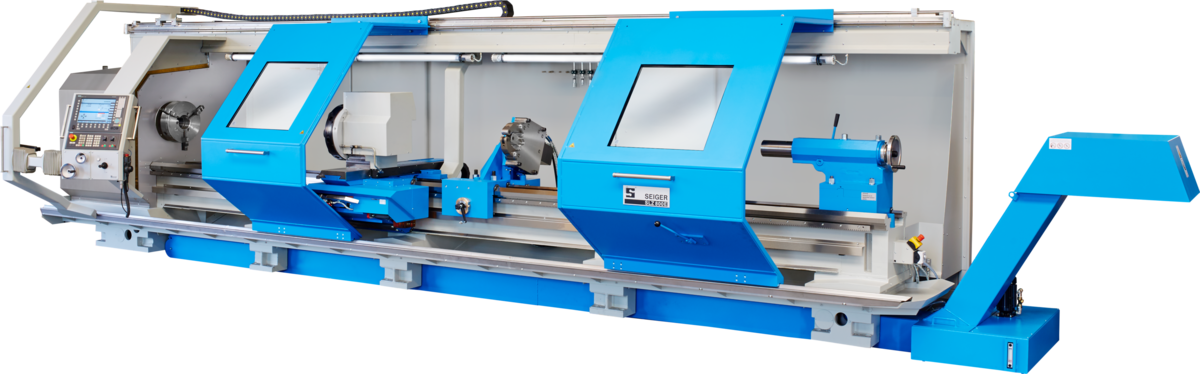

![SEIGER SLZ 800E Drehmschine](/files/0439_header_20170530-1796-slz800e.png)
SLZ 800E
SEIGER cycle lathe: Good accessibility with best cutting rates and well thought-out paneling systems
Information
General information
- Available with CNC or cycle control from Siemens or Heidenhain
- 2 safety doors at the front for 3,000 cover length. The right-hand door has been designed as a telescopic door
- Torsion-resistant bed made of high-quality cast iron with hardened precisely ground slideways, 480 mm bed width and glass scale on the X-axis.
- Safety clutch in the Z-axis and X-axis
- High degree of precision and rigidity of spindles thanks to precise spindle bearing, spindle bore Ø 130 mm as standard, Ø up to 200 mm as an option

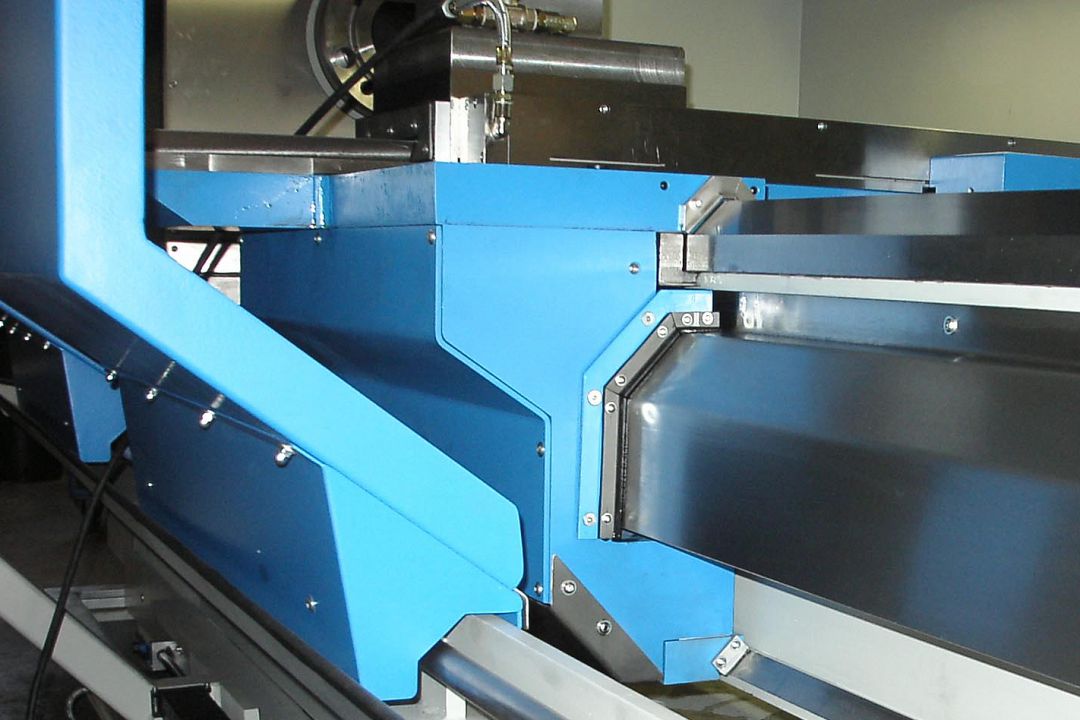

- Apron guide at the front as additional reinforcement

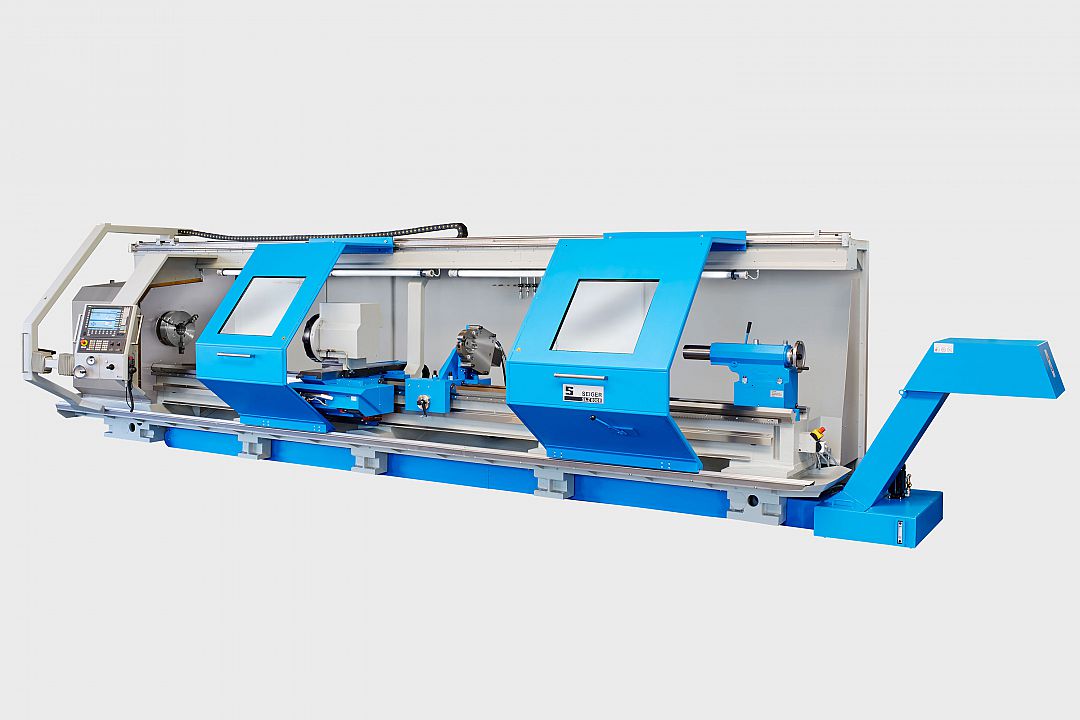

- Center distances of 1,500 mm to 8,000 mm can be delivered
- Can be manufactured with a choice of compact paneling and integrated control cabinet or with stud frame paneling and separate cabinet
Overview of features
Photos
Specifications and performance
Specifications
SLZ 800E | Unit | Value |
---|---|---|
Swing over bed | mm | 810 |
Swing over cross slide | mm | 540 |
Bed width | mm | 480 |
Spindle head in accordance with DIN 55027 | Size | 11 |
Spindle bore Ø | mm | 130 / 200 (Option) |
Spindle Ø in the front bearing | mm | 170 / 280 (Option) |

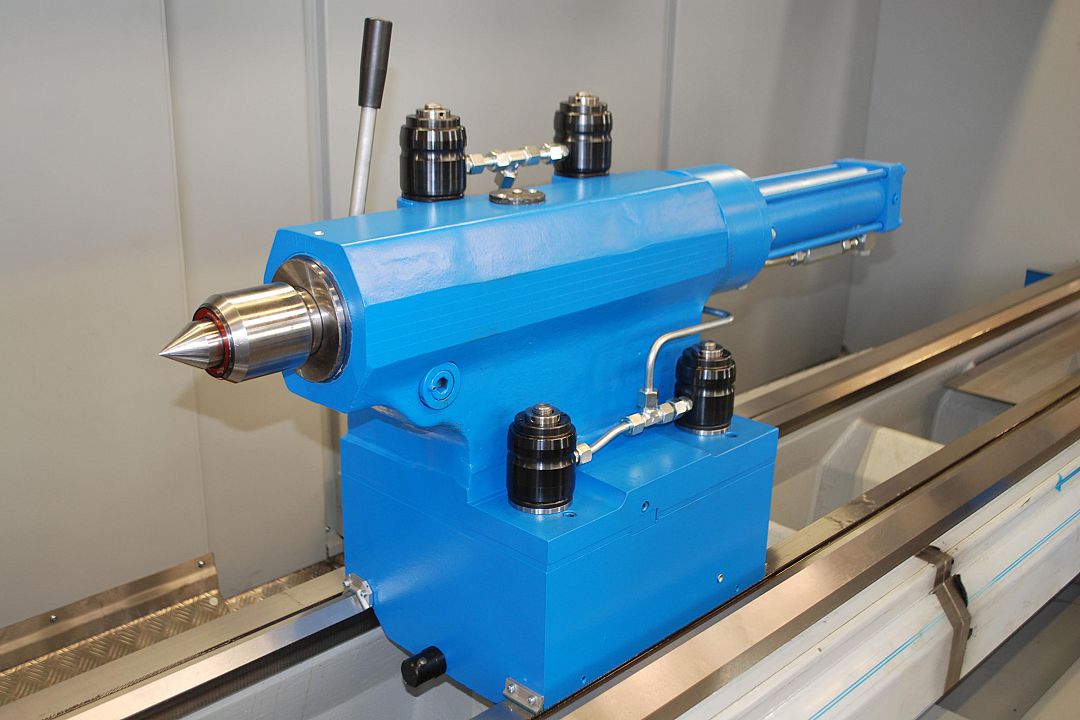

Tailstock quill Ø | mm | 115 |
Tailstock stroke | mm | 225 |
Tailstock Morse taper | MK | 6 |
Center distance | mm | 1.500 – 8.000 |
Performance
SLZ 800E | Unit | Value |
---|---|---|
Main drive | KW | 30 |
Speed range | 1 / min | 1 – 2.200 |
Dimensions | ||
Length | mm | 2.300 + Center distance |
Width | mm | 2.600 |
Height | mm | 2.050 |
