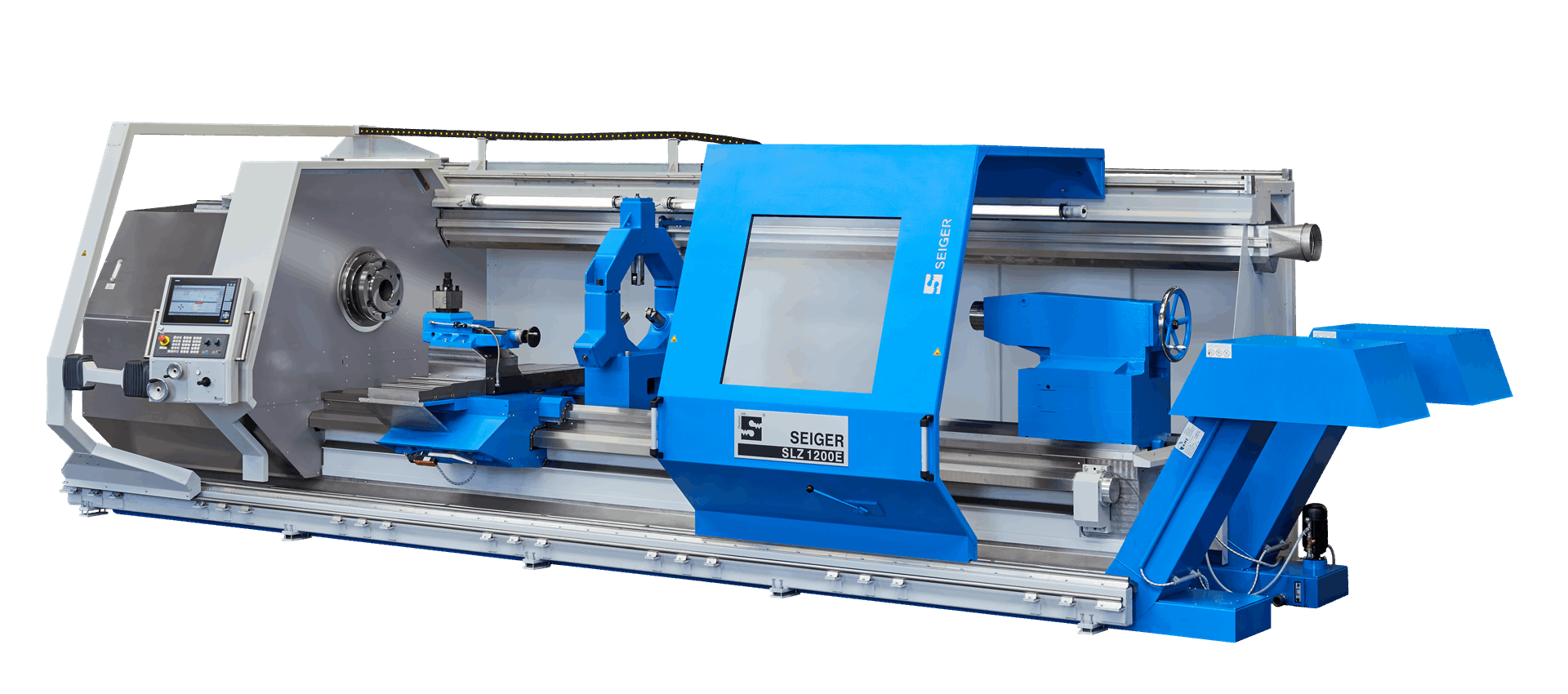

SLZ 1200E
SEIGER cycle lathe: Precision and performance for demanding users for the most sturdy technology in its class
![SEIGER SLZ 1200E Drehmschine](/files/0842_20200513-0217-slz1200e-copy.png)
SLZ 1200E
SEIGER cycle lathe: Precision and performance for demanding users for the most sturdy technology in its class
Information
General information
- Available with CNC or cycle control from Siemens or Heidenhain
- High degree of precision and rigidity of spindles

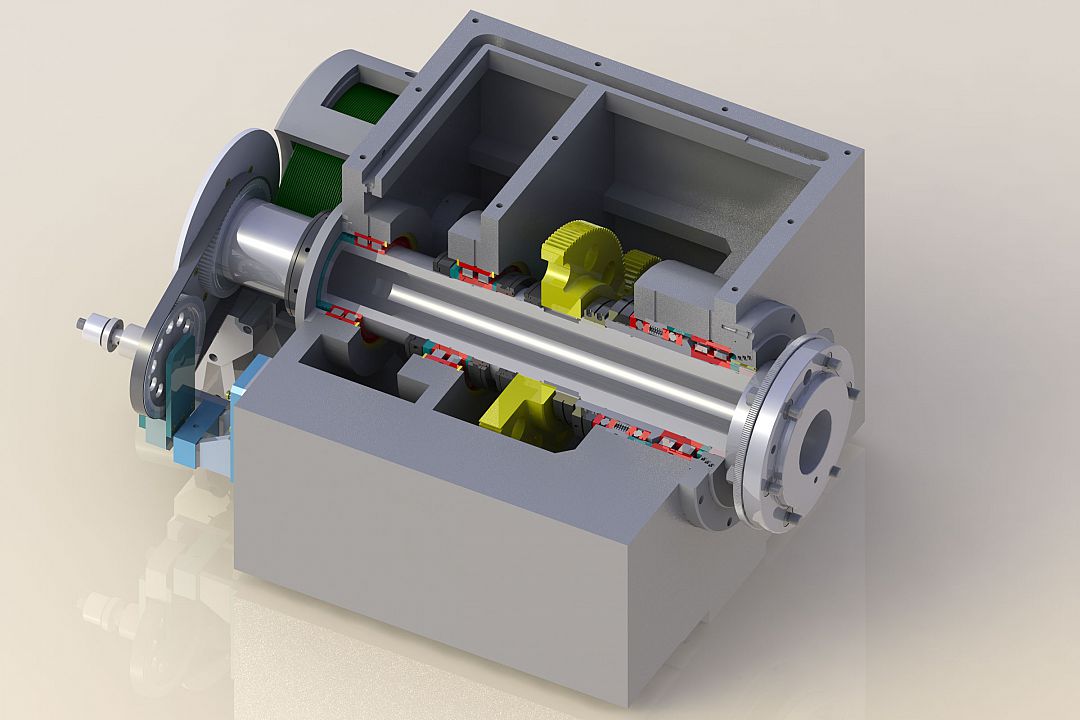

- Thermal separation through automatically switching gearbox, 46 kW main drive
- Spindle bore Ø 130 mm as standard, Ø up to 530 mm as an option
- Cross slide guides hardened and ground with telescopic cover
- Glass scale on the X-axis with sealing air system
- Torsion-resistant box-type bed with double prism guide, made of high-quality cast iron with hardened, precision-ground slideways
- 2 chip conveyors for better discharge as an option
- Additional guide at the front to reinforce the apron
- Part paneling or full paneling can be manufactured
Overview of features
Photos
Specifications and performance
Specifications
SLZ 1200E | Unit | Value |
---|---|---|
Swing over bed | mm | 1.250 |
Swing over cross slide | mm | 850 |
Bed width | mm | 750 |
Spindle head in accordance with DIN 55027 | Size | 15 |
Spindle bore Ø | mm | 130 / 530 (Option) |
Spindle Ø in the front bearing | mm | 220 / 670 (Option) |
Tailstock quill Ø | mm | 160 |
Tailstock stroke | mm | 315 |
Tailstock Morse taper | MK | 6 |
Center distance | mm | 1.000 – 20.000 |
Performance
SLZ 1200E | Unit | Value |
---|---|---|
Main drive | KW | 46 |
Speed range | 1 / min | 1 – 710 |
Dimensions | ||
Length | mm | 3.800 + Center distance |
Width | mm | 3.300 |
Height | mm | 2.550 |
