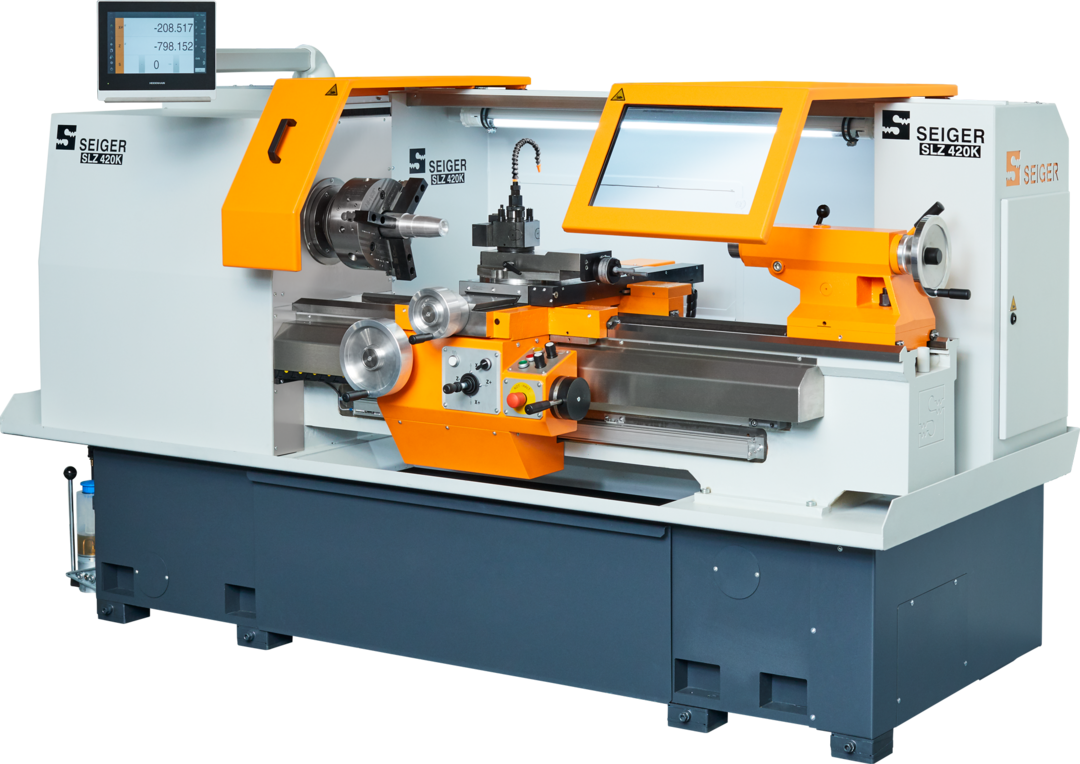

SLZ 420K / SLZ 420SK
The new dimension of the conventional lathe: Manual handling with a touch of digital support
![SEIGER SLZ 420K / SLZ 420SK Drehmschine](/files/0762_titelbild_slz420k.png)
SLZ 420K / SLZ 420SK
The new dimension of the conventional lathe: Manual handling with a touch of digital support
Information
General information
- Torsion-resistant bed made of high-quality cast iron with hardened precisely ground slideways and glass scale on the X-axis. Bed width 350 mm
- High degree of precision and rigidity of spindles thanks to precise spindle bearing, spindle bore Ø 80 mm as standard, Ø up to 130 mm as an option
- Mechanical handwheels
- Linear scale (from Heidenhain) in the X-axis and Z-axis(standard)
- Subframes as a hybrid structure of high-strength, cement-bound mineral composite

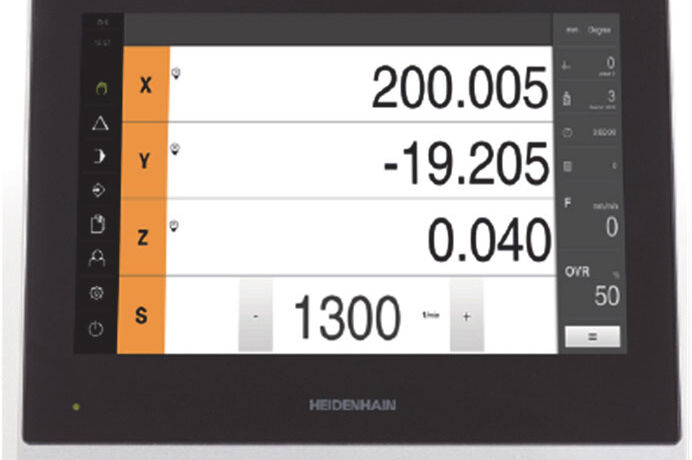

- Digital display Heidenhain Positip 8016
- Free choice of thread pitches
- V-constant and controllable feed rates via potentiometer
- Rapid motion function in both axes
Overview of features
Photos
Specifications and performance
Specifications
SLZ 420K | Einheit | Wert |
---|---|---|
Swing over bed | mm | 430 |
Swing over cross slide | mm | 220 |
Bed width | mm | 350 |
Spindle head in accordance with DIN 55027 | Gr. | 6 |
Spindle bore Ø | mm | 80 / 93 (Option) |
Spindle Ø in the front bearing | mm | 110 / 130 (Option) |

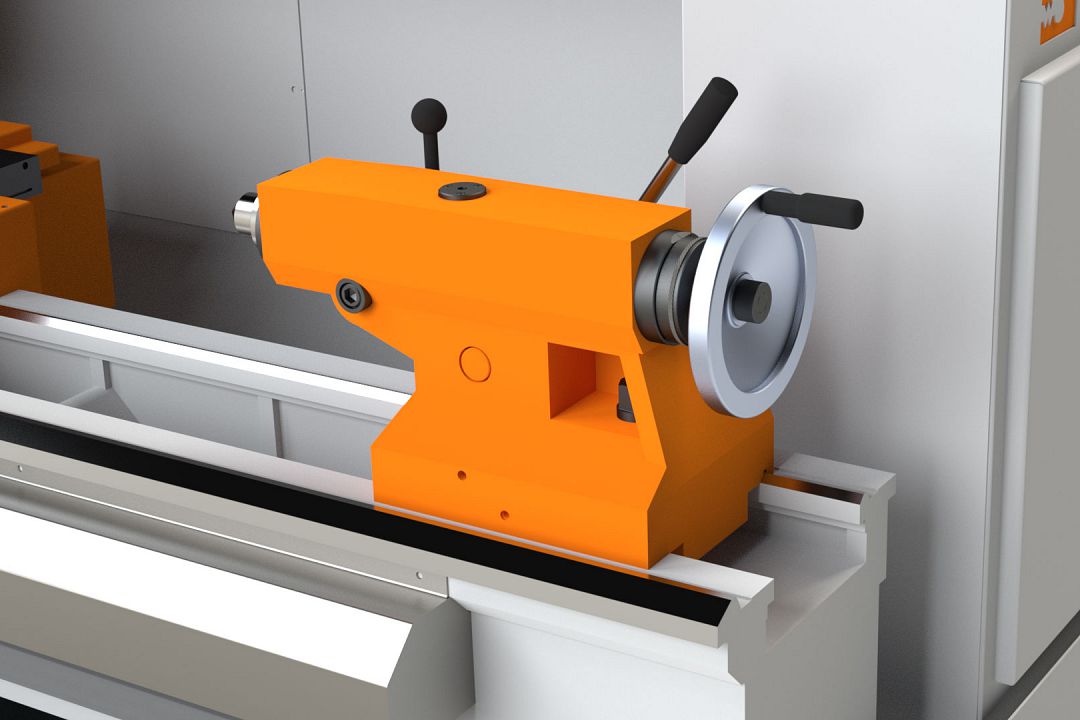

Tailstock quill Ø | mm | 70 |
Tailstock stroke | mm | 150 |
Tailstock Morse taper | MK | 5 |
Center distance | mm | 1.000 / 1.500 / 2.000 |
Performance
SLZ 420K | Einheit | Wert |
---|---|---|
Main drive | KW | 11 / 20 (Option) |
Speed range | 1/min | 1 – 3.000 |
Maße | ||
Length | mm | 1.900 + Center distance |
Width | mm | 1.500 |
Height | mm | 1.600 |
