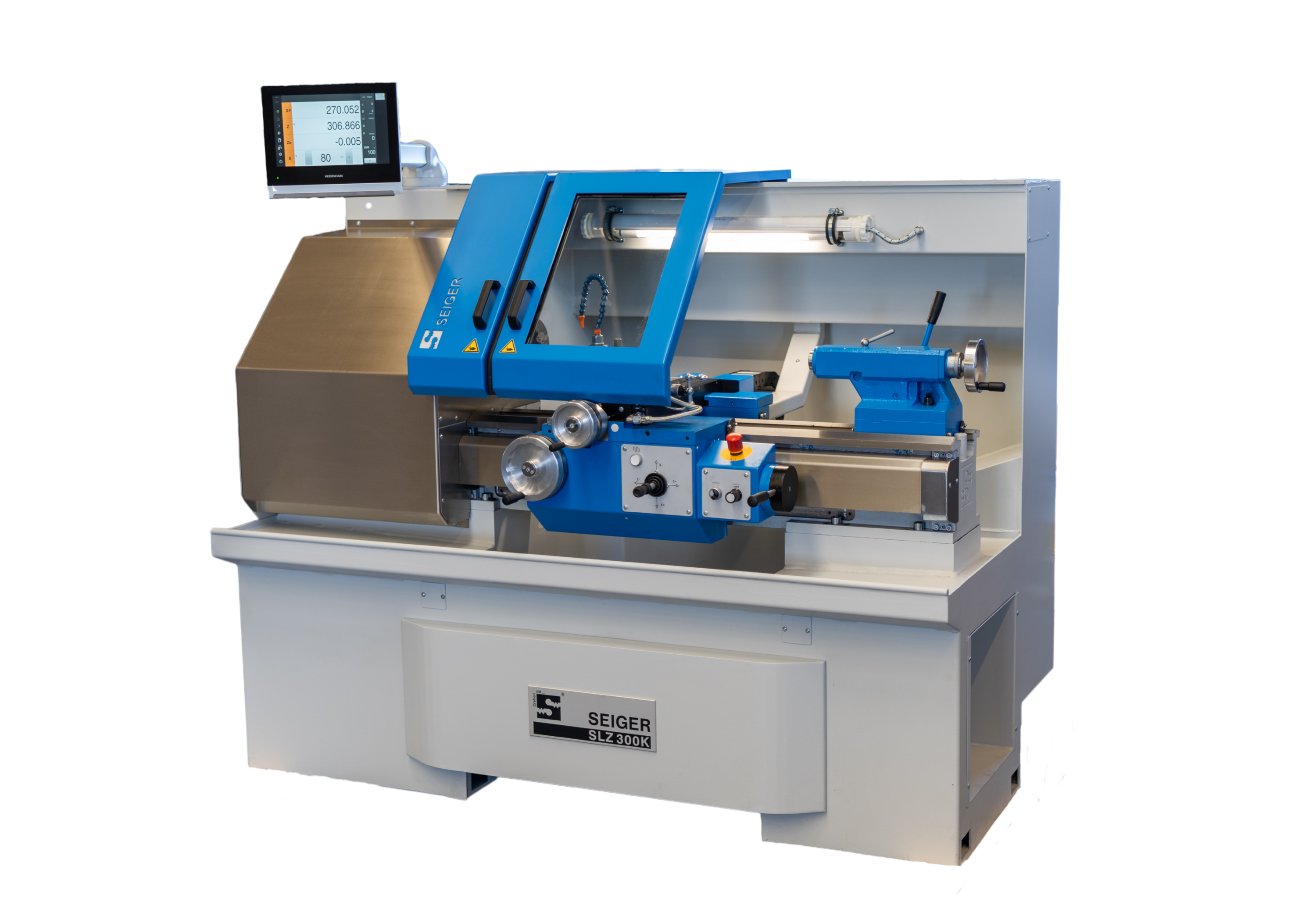

SLZ 300K / SLZ 300SK
The first step into the digital world – the servo-conventional lathe from SEIGER: State-of-the-art decentralized drive technology with an ingenious operating concept makes the fast production of radii, threads, recesses etc. possible
![SEIGER SLZ 300K / SLZ 300SK Drehmschine](/files/0870_titelbild_slz300sk.png)
SLZ 300K / SLZ 300SK
The first step into the digital world – the servo-conventional lathe from SEIGER: State-of-the-art decentralized drive technology with an ingenious operating concept makes the fast production of radii, threads, recesses etc. possible
Information
General information
- Torsion-resistant bed made of high-quality cast iron with hardened precisely ground slideways. Bed width 240 mm
- High degree of precision and rigidity of spindles thanks to precise spindle bearing, spindle bore Ø 40 mm as standard, Ø up to 55 mm as an option

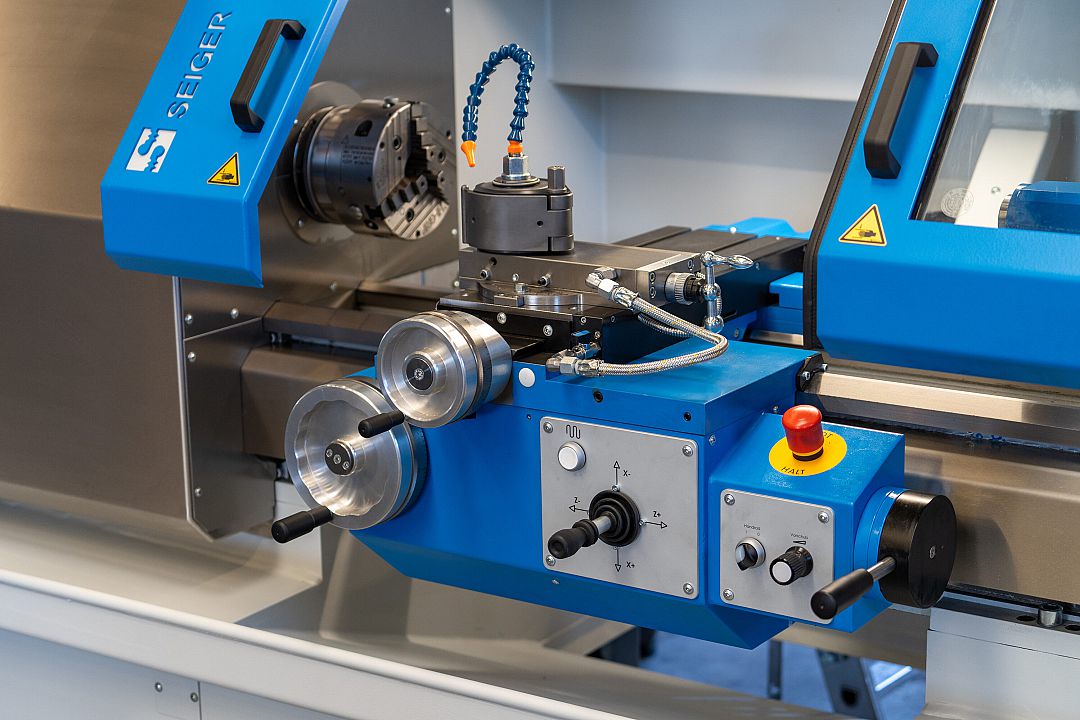

- Mechanical handwheels

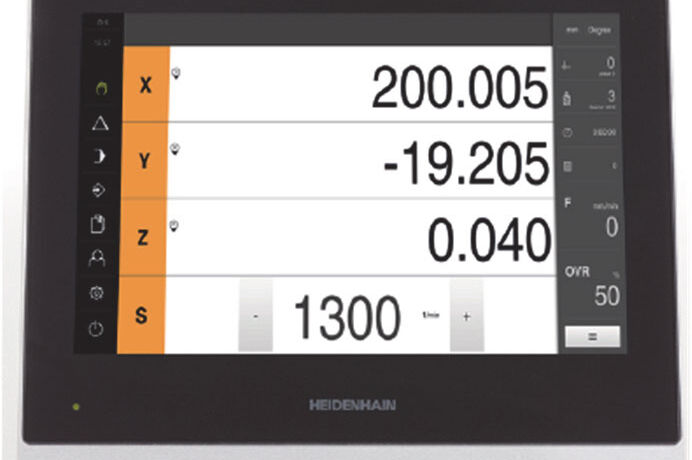

- Heidenhain 620 manual control
- In accordance with DIN 8605 (toolmaker accuracy)
- With the SEIGER SK series, you can map the entire contents of the training chain for qualification in machining professions for turning technology. A machine can be expanded depending on the year of apprenticeship.
1st expansion stage: setting stop, thread cutting
2nd expansion stage: manual cycles
3rd expansion stage: editing NC programs in DIN/ISO mode, execution of programs in program run mode
Overview of features
Photos
Specifications and performance
Specifications
SLZ 420K | Einheit | Wert |
---|---|---|
Swing over bed | mm | 300 |
Swing over cross slide | mm | 150 |
Bed width | mm | 240 |
Spindle head in accordance with DIN 55027 | Gr. | 5 |
Spindle bore Ø | mm | 55 / 55 (Option) |
Spindle Ø in the front bearing | mm | 70 / 90 (Option) |

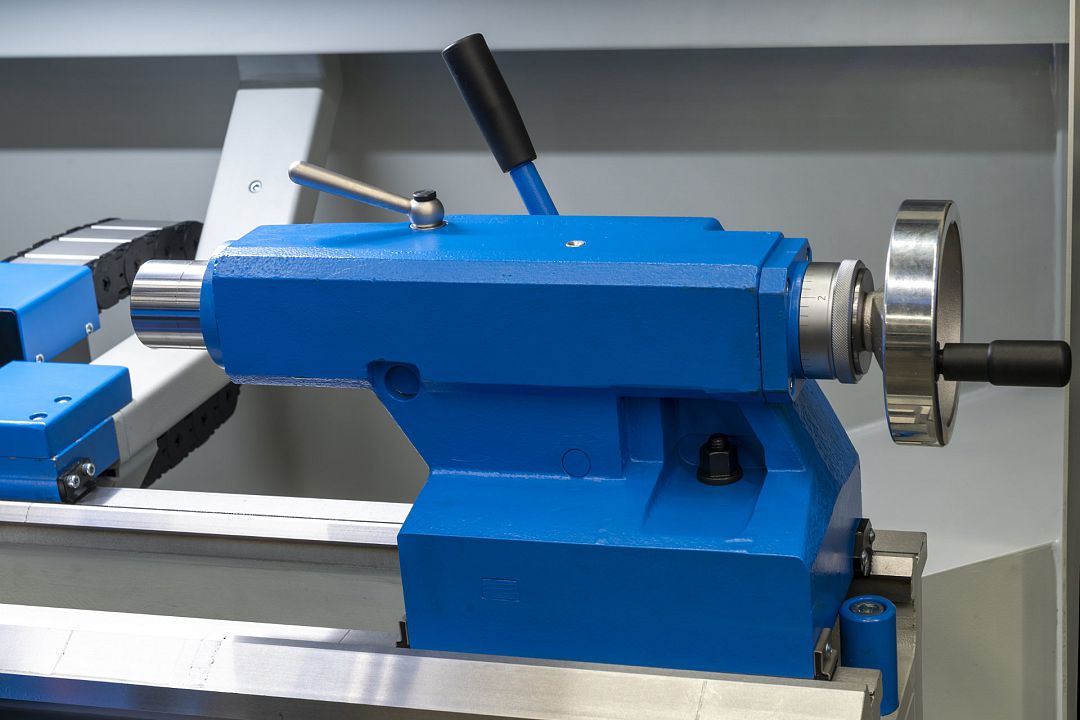

Tailstock quill Ø | mm | 50 |
Tailstock stroke | mm | 125 |
Tailstock Morse taper | MK | 3 |
Center distance | mm | 750 |
Performance
SLZ 420K | Einheit | Wert |
---|---|---|
Main drive | KW | 11,5 |
Speed range | 1/min | 1 – 3.000 |
Maße | ||
Length | mm | 2.000 |
Width | mm | 1.800 |
Height | mm | 1.850 |
